Stereo Zoom Microscopes
Workhorse zoom stereo microscopes for assembly, rework and QC — 3.5x to 180x.
Industrial stereo zoom microscopes built for everyday bench work — soldering, assembly, rework and quality control. A smooth 0.7–4.5x zoom body (1:6.4 zoom ratio) with high-eyepoint eyepieces delivers a crisp, erect 3D image with generous working distance, and a broad range of eyepieces, auxiliary objectives, stands, lights and cameras lets us configure each microscope precisely to the job.

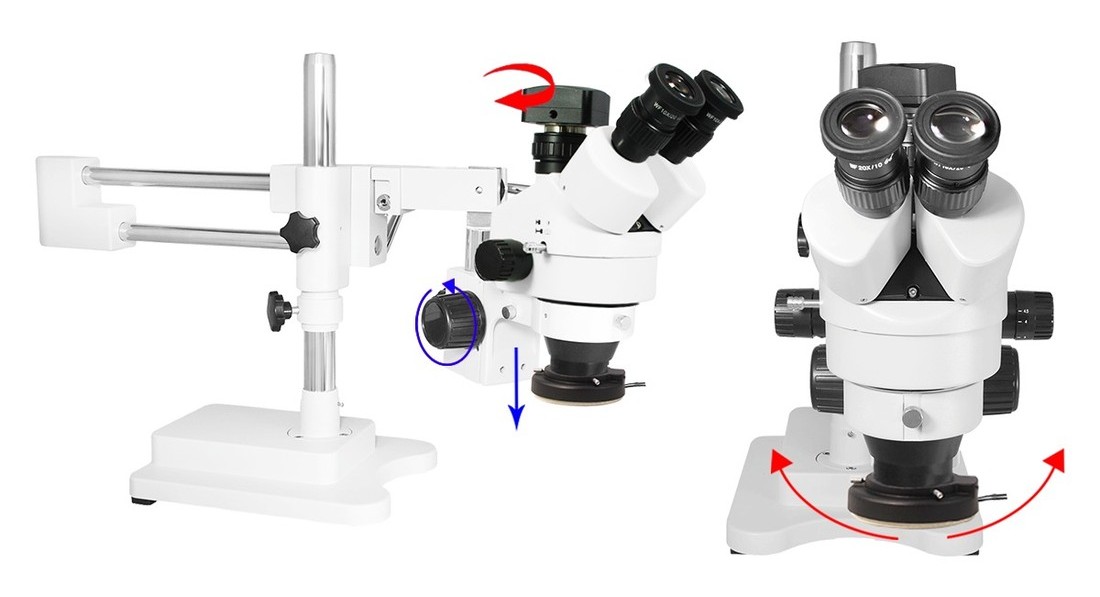

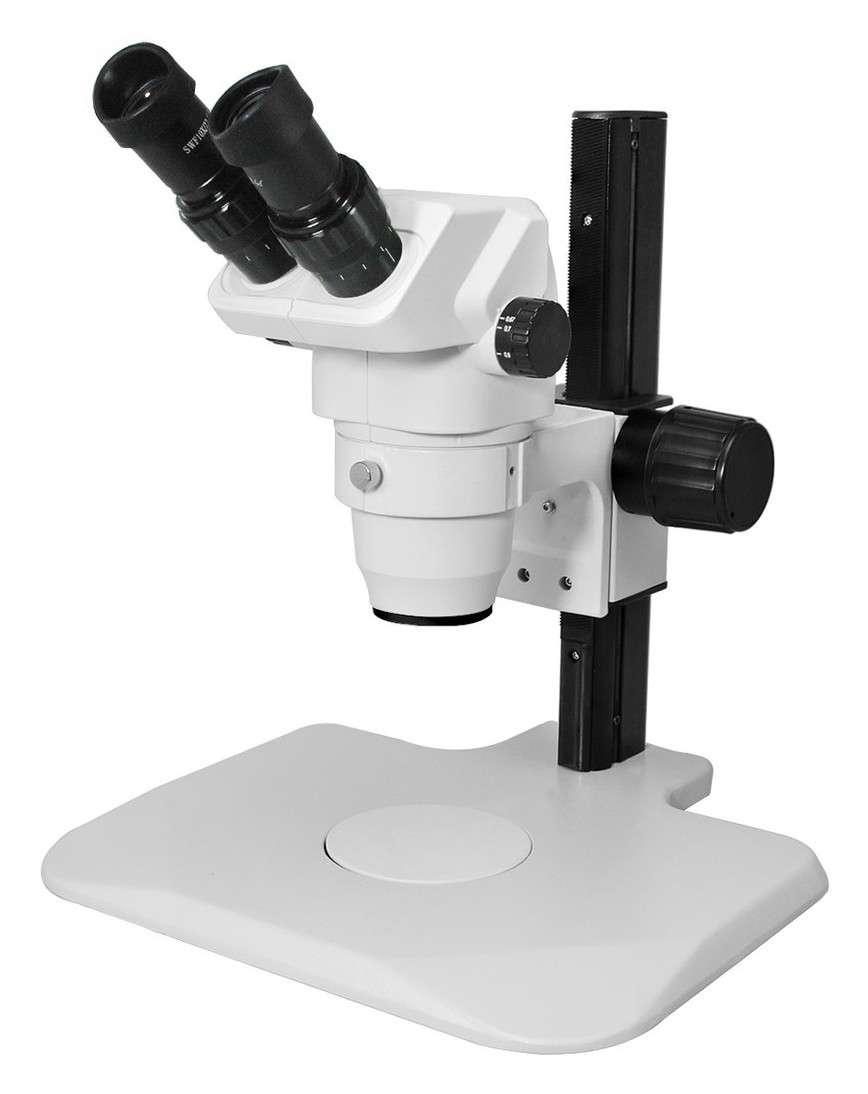

Choose a binocular head for pure visual work, or a trinocular head with a dedicated photo port for documentation: add a C-mount coupler and a USB or 4K camera to capture stills and video or share a live image on a monitor. LED ring lights, dual-gooseneck spots and combination illuminators handle any surface finish, while post, double-arm boom and articulated-arm stands reach comfortably across benches and larger assemblies.
Typical configuration (trinocular head, 0.5x auxiliary objective, 16MP USB 3.0 camera): total magnification 3.5x–180x, field of view Ø1.1–57mm, working distance up to 165mm, Siedentopf 45° eye tubes rotatable through 360°, interpupillary adjustment 54–76mm and ±5 diopter adjustment. Tell us your parts and magnification needs and we will spec the right combination.
Series available
- Binocular & trinocular zoom heads (0.7–4.5x, 1:6.4 zoom ratio)
- Magnification 3.5x–180x via auxiliary objectives & eyepiece options
- USB / 4K CMOS cameras with C-mount couplers
- LED ring lights, gooseneck & combination illumination
- Post, double-arm boom & articulated-arm stands
Typical applications
- Electronics assembly & rework
- Quality control & documentation
- Dental & medical device labs
- Precision mechanical inspection
